INTRODUCTION
The hybrid inverter is also equipped with advanced energy management features, including grid-tie and off-grid capabilities, as well as battery backup and charging functions. This allows users to optimize their energy consumption and reduce their reliance on the grid, while also ensuring reliable power backup in the event of a power outage.
The EGbatt 10KW 120V 240V Split Phase USA Energy Storage Hybrid Inverter is also designed with safety in mind, with built-in protection features such as overload protection, short-circuit protection, and over-temperature protection. This ensures the system operates safely and efficiently, even during periods of high demand.
Note: This inverter is design for USA or Canada based on split phase 120 volt and 240 volt L1 L2 N grid electric. If you are looking for 230v please check this model
Datasheet
| MODEL | 8K-EG-SP240V | 10K-EG-SP240V | CAN BE SET |
|---|---|---|---|
| INVERTER OUTPUT | |||
| Rated Output Power | 8,000W | 10,000W | |
| Max.Peak Power | 16,000W | 20,000W | |
| Rated Output Voltage | 120/240Vac（L1/L2/N/PE split phase） | Y | |
| Load Capacity of Motors | 5HP | 6HP | |
| Rated AC Frequency | 50/60Hz | Y | |
| Waveform | Pure Sine Wave | ||
| Switch Time | 10ms（typical） | ||
| Parallel capacity | / | ||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | Y | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40-60Vdc | Y | |
| Max.MPPT Charging Current | 200A | Y | |
| Max.Mains/Generator Charging Current | 100A | 120A | Y |
| Max.Hybrid Charging Current | 180A | 200A | Y |
| PV INPUT | |||
| Num. of MPP Trackers | 2 | ||
| Max.PV array power | 11,000W | ||
| Max.input current | 22/22A | ||
| Max.Voltage of Open Circuit | 500Vdc | ||
| MPPT Voltage Range | 125-425Vdc | ||
| MAINS / GENERATOR INPUT | |||
| Input Voltage Range | 90-140Vac | ||
| Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max. Battery Inverter Efficiency | 92% | ||
| GENERAL | |||
| Dimensions | 620*435*130mm（2*1.4*0.4ft） | ||
| Weight | 20kg（44lb） | 21kg（46.3lb） | |
| Protection Degree | IP20，Indoor Only | ||
| Operating Temperature Range | -15~55℃,>45℃ derated （5~131℉，>113℉ derated） | ||
| Noise | <60dB | ||
| Cooling Method | Internal Fan | ||
| Warranty | 2 Years | ||
| COMMUNICATION | |||
| Embedded Interfaces | RS485 / CAN / USB / Dry contact | Y | |
| External Modules （Optional） | Wi-Fi / GPRS | Y | |
| CERTIFICATION | |||
| Safety | IEC62109-1, IEC62109-2,UL1741 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| RoHS | Yes | ||
What is a Split phase inverter?
A split phase hybrid inverter is a type of inverter used in solar energy systems, particularly in North America. Here are some key aspects:
Function

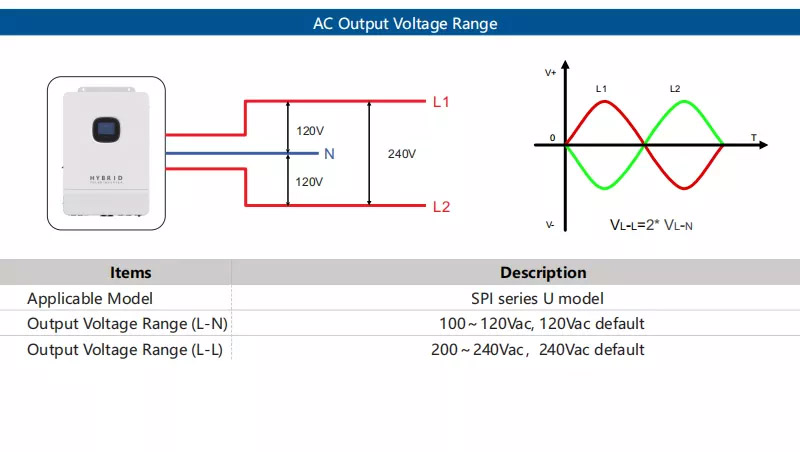

- Split Phase: It converts the direct current (DC) generated by solar panels into alternating current (AC). In a split phase system, it provides two 120V outputs that are 180 degrees out of phase, which can be combined to deliver 240V for heavier appliances.
- Hybrid: This type of inverter can manage multiple energy sources, such as solar panels and battery storage. It can prioritize solar energy, draw from the grid, or use battery power as needed.
Benefits
- Energy Management: It optimizes energy usage by allowing you to draw from the most cost-effective source.
- Backup Power: During grid outages, a hybrid inverter can keep your essential appliances running by using stored energy in batteries.
- Efficiency: It maximizes the efficiency of the solar system by allowing for real-time management of energy flows.
Applications
- Residential Use: Ideal for homes wanting to utilize solar power while having backup options.
- Off-Grid Systems: Useful for setups that require energy independence, such as cabins or remote locations.
Overall, split phase hybrid inverters are valuable for maximizing renewable energy use while providing reliability and flexibility in energy management.
What is the difference between single-phase inverter and split-phase inverter?
The main difference lies in how they deliver power:
Single-Phase Inverter
- Output: Provides a single AC voltage (usually 120V or 230V) suitable for smaller loads.
- Usage: Common in smaller residential applications and simple setups.
Split-Phase Inverter
- Output: Delivers two 120V outputs that are 180 degrees out of phase, allowing for both 120V and 240V applications.
- Usage: Common in North America for residential systems that require higher voltage for larger appliances.
In essence, split-phase inverters offer greater versatility for managing both standard and high-demand electrical devices.
Compatible battery with the off grid hybrid split-phase inverter
Energy storage hybrid Split phase inverter support 48v battery system and 51.2v LiFePo4 battery. Above model with 51.2v 200Ah. Customer can use one or more pcs for large energy storage system with the split phase inverter. We suggest 30KWH and 50KW for the 10KW inverter. Of cause can use more battery rack modular for even larger system if your house has more room and people live. If you are not sure, just check your electric bill. it will shows some basic information for your reference.
