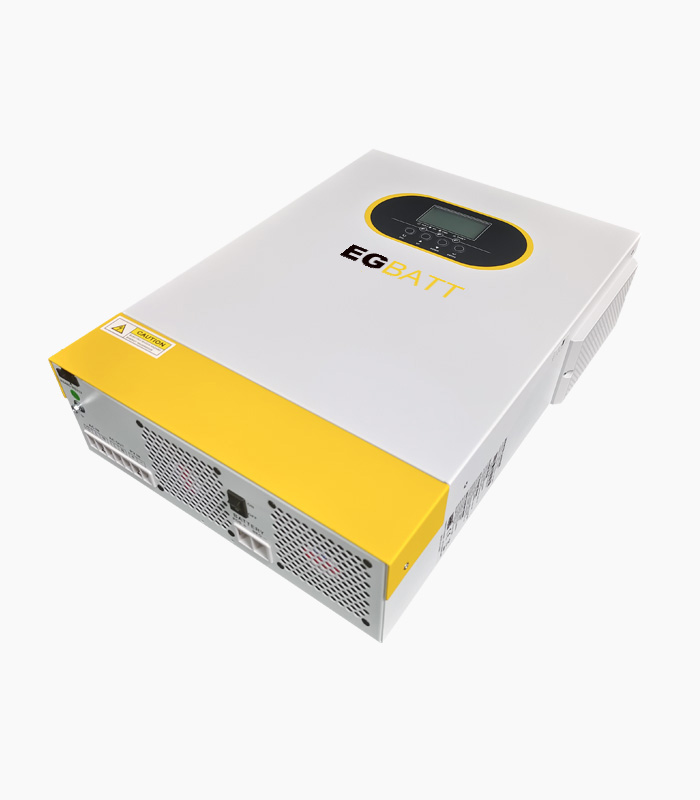

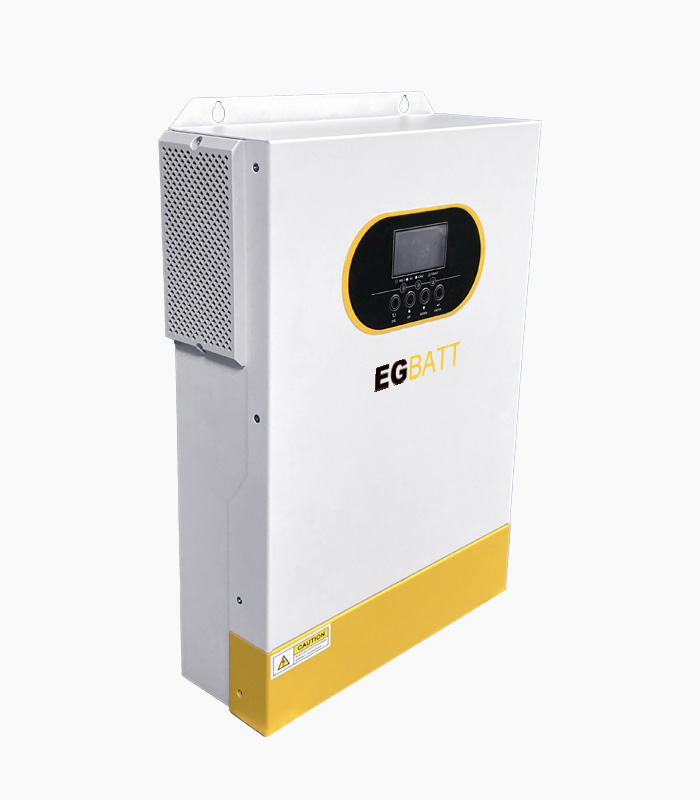

6200W hybrid solar energy storage inverter

Description

EGbatt 3kW Off-Grid Inverter is Perfect for Your Off-Grid Needs

When it comes to off-grid living or ensuring reliable power in remote locations, having the right inverter can make all the difference. The EGbatt 3kW Off-Grid Inverter (3000EHV-48) is one of the most efficient and compact solutions for your off-grid power needs. Whether you're living in a cabin, working in a barn, or traveling in an RV, this inverter offers unmatched reliability and performance. Let’s dive into why it’s the best choice for your off-grid setup.

Why Choose the EGbatt 3kW Off-Grid Inverter (3000EHV-48)?

1. Reliable Power Output

With a 3000W continuous output and 5000W PV input, the EGbatt 3kW Off-Grid Inverter is built to handle the power demands of small homes, cabins, RVs, or critical load panels. From lights and refrigerators to your 9K BTU mini-split AC, this inverter ensures that your most essential appliances run smoothly.

2. Expandable to Fit Your Needs

Need more power? The EGbatt 3kW Off-Grid Inverter allows you to connect up to 12 units in parallel, creating a powerful 36kW system. This makes it perfect for larger off-grid setups or systems that need more energy storage and capacity.

3. Advanced Protection Features

Safety is a top priority with the EGbatt 3kW Inverter. It includes built-in protections against overloads, short circuits, and overheating, ensuring that your system remains stable and safe, even in demanding conditions.

4. Easy Customization

The built-in LCD display offers a user-friendly interface where you can easily customize settings, such as adjusting the battery charging current or choosing AC/solar charging priority. It’s all about providing control and flexibility, so you can tailor the system to suit your needs.

5. Active Cooling System

Unlike many other inverters, the EGbatt 3000EHV-48 features an upgraded active cooling system that ensures efficient performance under load. This design improvement helps keep your inverter running at optimal temperatures, even in warmer environments.

Specification:

EG-MODEL	E3500-24L	E5500-48L	E6200-48L
Capacity	3.5KVA/3.5KW	5.5KVA/5.5KW	6.2KVA/6.2KW
Parallel Capability	NO	NO	NO
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280vac(For Home Appliances)
Frequency	50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	7000VA	11000VA	12400VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency(PV to INV)	96%
Peak Efficiency(Battery to INV)	93%
Overload Protection	5s@>=150% load; 10s@110%~150% load
Crest Factor	3:1
Admissible Power FACTOR	0.6~1（inductive or capacitive)
BATTERY
Battery Voltage	24VDC	48VDC	48VDC
Floating Charge Voltage	27VDC	54VDC	54VDC
OverCharge Protection	33VDC	63VDC	63VDC
Charging Method	CC / CV
Lithium Battery Activation	YES
Lithim battery Communication	YES(RS485)
Solar Charger & AC Charger
Solar Charger TYPE	MPPT
Max.PV Array Power	4000W	5500W	6500W
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC~500VDC
Max.Solar Input Current	15A	18A	27A
Max.Solar Charge Current	100A	100A	120A
Max.AC Charge Current	80A	80A	80A
Max.Charge Current（PV+AC)	100A	100A	120A
PHYSICAL
Dimensions,D x W x H(mm)	358295100	438295105
Package Dimensions,D x W x H(mm)	465380175	560375185
Net Weight(Kg)	7	9	9
Communication Interface	RS232+RS485
ENVIRONMENT
Operating Temperature Range	（-10℃ to 50℃）
Storage temperature	（-15℃ ~ 50℃）
Humidity	5% to 95% Relative Humidity ( Non-condensing )

What’s Included with the EGbatt 3kW Off-Grid Inverter?

To make installation and setup even easier, the EGbatt 3kW Off-Grid Inverter comes with a bonus kit:

Wi-Fi Stick for remote adjustments and monitoring of your system.
125A UL-listed Nader Breaker and Din Bracket for easy installation.
6ft 4 AWG Red & Black Battery Cables for straightforward wiring.

How to Use the EGbatt 3kW Inverter for Your Off-Grid System

Whether you’re powering a small cabin or working on an off-grid RV build, the EGbatt 3kW Inverter is designed to fit your needs. Here's how you can put it to good use:

Install in Small Off-Grid Homes or Cabins: Ideal for powering small appliances, lights, and even a mini-split AC.
Use in RVs: Reliable power for mobile living in your RV or van.
Backup for Critical Loads: Ensure uninterrupted power during outages or in critical areas such as medical devices or small appliances.
