An ultra-thin battery with 200Ah for the RV Camper has come, it’s here

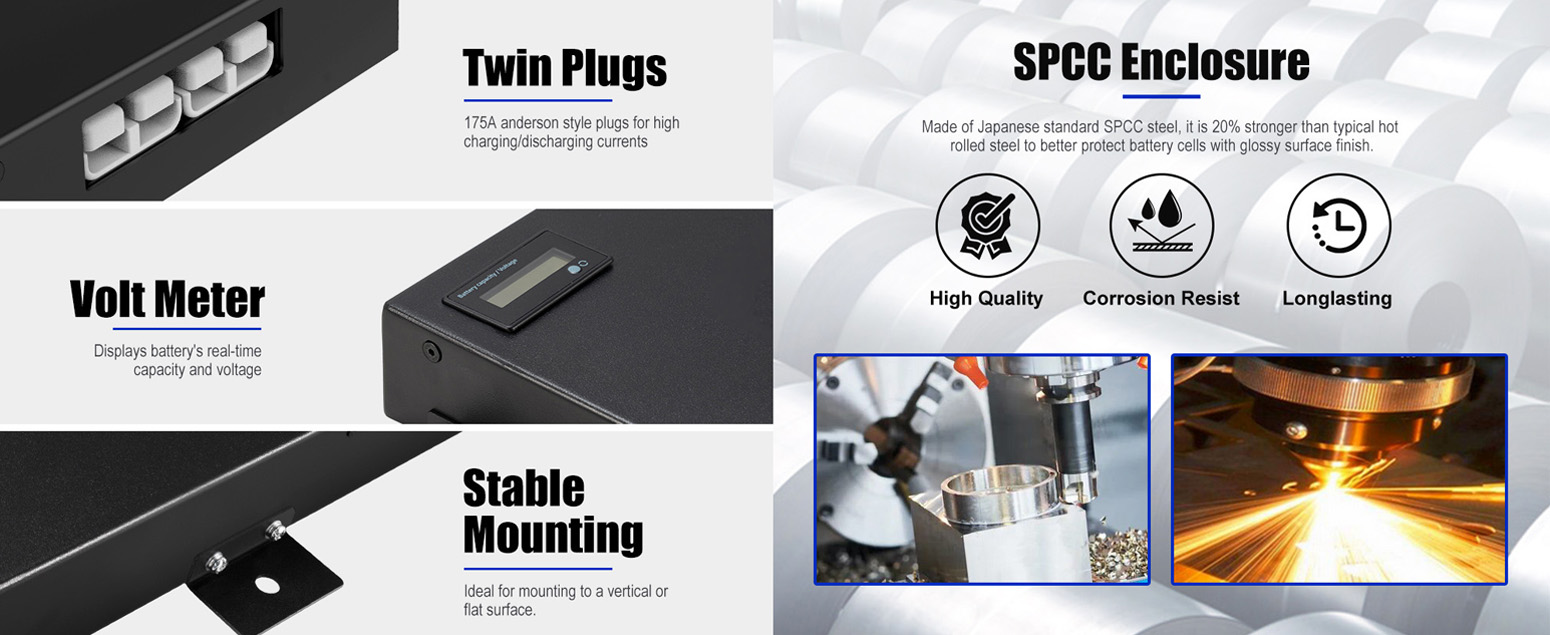

Currently, for 12V 200A batteries, this EG-200AH is the thinnest and is used in RVs， It has been designed to allow sufficient discharge amp rating to power high power appliances such as a microwave or coffee machine. Lower internal resistance allows this 200Ah slimline lithium battery/slimline lithium iron battery/ to be charged and ready to use much faster. Volt meter displays LiFePO4 battery’s capacity and voltage, and twin 175A Anderson style plugs for high current charging & discharging.

Fit Where Others Can’t: The super slim blade profile (6.25cm in thickness) makes it the perfect battery to be mounted behind or under seats or at the 4×4’s back； Longer Lifespan: This slimline lithium iron phosphate battery can deliver up to 2,000 rounds — several times the life of a lead-acid counterpart.

A Grade Cell: It is composed of A grade prismatic cells that provides higher energy density and consistency and is less prone to failure caused by vibration； Higher Usable Capacity: EGBatt are recommended to be discharged to 50% of the capacity while this lithium ion slim battery can be discharged to 80-90%； High Quality BMS: It allows a Max. 300A discharge current and provide voltage/ temperature monitoring and smart balancing with a low self-discharge rate.

Impeccably Lightweight: Weighted 28.4kg, it provides 200AH that doubles the power of an AGM with half of that weight,even SPCC steel enclosure is equipped； SPCC Enclosure: Made of Japanese standard SPCC steel, it is 20% stronger than typical hot rolled steel to better protect battery cells with glossy surface finish.

Datasheet

Product Dimension	L96W33.5H6.25cm
Product Weight	28.4kg
Case Material	SPCC Steel, According to Japanese Standard JIS G 3141
Anderson Plugs	175A
Nominal Capacity	200Ah
Nominal Voltage	12.8V
Cycle Life	5,000 Cycles
Charge Voltage	10V-14.6V
Max. Charge Current	75A
Max. Continuous Discharge Current (25°C)	150A
Max. Discharge Current	300A(≤7S)
Charge Temperature	0°C~60°C
Discharge Temperature	-20~70°C
Standard Operation Temperature	-20~70°C
Internal Impedance	≤10mΩ
Self-discharge Rate(per month)	2%
Max. Modules in Series/Parallel	4S/2P
Warranty	3 Years

Inquiry

Additional information

Weight	28.4 kg
Dimensions	96 × 33.5 × 6.25 cm

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “12v 200ah Slimline Lifepo4 Lithium Iron Battery”

Shipping & Delivery

Shipping Notice

EGBATT has set a high standard for shipping lithium batteries. As lithium ion batteries fall under DG (dangerous goods) category, they use high-quality DG boxes or DG wooden cases to pack the batteries along with thick foam. This ensures that the batteries are delivered to customers in the best possible condition and without any damage.

We accept shipping

By express or Air shipping like UPS, DHL, Fedex.
Shipping by sea to port or to door service.
FAC to Customer's forwarder company in China.

EGBATT ensures that all of its batteries meet the MSDS and UN38.3 standards. The packaging requirements for lithium batteries shipped by sea depend on the Watt-hour rating for lithium ion cells or batteries, or the lithium metal content for lithium metal cells or batteries. The packaging needs to meet UN specifications or be strong and rigid packing that can withstand the shocks, mechanical handling, and loading encountered during transport.

Shipping Regulation

If you are an international customer, please note that products will be shipped directly from China. To place your order, please contact odmbattery@outlook.com manually, rather than ordering on the website, as shipping costs may be inaccurate for regions outside of the USA.

EGbatt understands the importance of proper handling and regulation compliance when it comes to shipping lithium ion batteries. We take great care to follow all regulations for sea and air shipping to ensure the safe and secure transport of these potentially hazardous materials.

Shipping lithium ion batteries comes with specific guidelines outlined by transportation authorities, including the International Air Transport Association (IATA) and the International Maritime Dangerous Goods (IMDG) code, to minimize the risk of fire or explosion during shipping. These guidelines cover packaging, labeling, and documentation requirements, among other things. At EGbatt, we stay up-to-date with all current regulations and guidelines to ensure we are shipping our products safely and responsibly. We understand the risks involved with transporting lithium ion batteries and take the necessary precautions to minimize those risks for both our customers and our employees.

OFFgrid 48v 800Ah on solar energy storage system

Click to enlarge

Back to products

12v 200ah Slimline Lifepo4 Lithium Iron Battery

The EG-12V200Ah slimline lithium battery, designed as sleek as a blade at just 6.25cm thick. It’s the perfect solution for squeezing maximum capacity into minimal space. Crafted with A-grade prismatic cells, it offers unrivaled reliability and packs 2~3 times the energy of comparable batteries. Whether it’s for powering camping fridges, 12V lights, or any other gear, this battery delivers steadfast energy support. With a top-notch BMS ensuring safety, it boasts a peak discharge current of 300A and a continuous discharge current of 150A, capable of running high-powered appliances with ease. Encased in SPCC housing meeting Japanese standard JIS G 3141, it’s 20% stronger than typical hot rolled steel, providing robust protection for the cells. Perfect for caravans, camper trailers, motorhomes, and 4x4s, installation is a breeze. Don’t let limited space limit your power potential.

SKU: Ultra-thin 12V 200Ah LiFePO4 battery Category: Portable Power Station

Product Dimension	L96W33.5H6.25cm
Product Weight	28.4kg
Case Material	SPCC Steel, According to Japanese Standard JIS G 3141
Anderson Plugs	175A
Nominal Capacity	200Ah
Nominal Voltage	12.8V
Cycle Life	5,000 Cycles
Charge Voltage	10V-14.6V
Max. Charge Current	75A
Max. Continuous Discharge Current (25°C)	150A
Max. Discharge Current	300A(≤7S)
Charge Temperature	0°C~60°C
Discharge Temperature	-20~70°C
Standard Operation Temperature	-20~70°C
Internal Impedance	≤10mΩ
Self-discharge Rate(per month)	2%
Max. Modules in Series/Parallel	4S/2P
Warranty	3 Years
